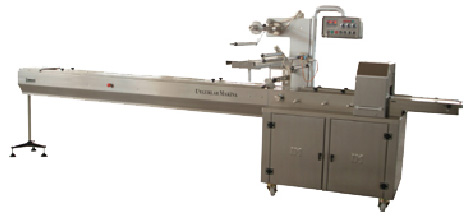

UM-1200 HORIZANTAL FLOW-PACK PACKAGING MACHINE
- High technology
- Completely chromium surfaces
- European food industry standarts
- Safe project & equipment
- Gratis operator training Mechanical and electrical spare parts guarantee
TECHNICAL SPECIFICATIONS
Capacity |
Cold Sealing Material |
- 520 kg(net)
- 220 V.A.C/300 V.A.C
- 1.1 Kw. power
- 4x600 Watt resistance
- 2x300 Watt resistance
- Hot sealing speed 100-170 R/M
- Cold sealing speed 250-350 R/M
|
All kinds of such material
Product dimensions supply to the production capacity |
Product Dimensions |
Min. mm. |
Max. mm. |
Lenght |
40 |
400 |
Height |
2 |
60 |
Width |
15 |
200 |
|
Hot Sealing Material |
Cellophane, pruluze, laminated p.p. , laminated AL. , p.p. |
|
| |
|
| |
| |

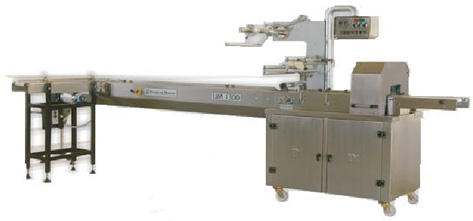

UM 1300 FLOWPACK PACKING MACHINES
| Total erected power |
6 KW |
| Supply voltage |
3 Phase 380V |
| Consumed current |
16 A |
| Disc Heating Power |
16 A |
| Disc Heating Power |
24 Volt-2 x 400 W |
| Jaw Heating Power |
24 Volt-2 x 400W |
| Engine Power |
2 x 1,1 KW |
| Engine Voltage |
3 Phase 220V |
| Control circuit |
24 V DC |
| Control supply resource power resource |
220V , 24V DC 4,5A with short-circuit protection an with switch |
| Engine Rotation |
0 – 200 RPM It can be adjusted. |
| Disc and Jaw Temperatures |
0 – 600 C It can be adjusted. |
| Electrical supply to heaters |
with collector, brush and coal |
| PROTECTION |
| Over-load, excessive heating, mechanical locking |
Engine Projection |
| Driver Protection |
Over-load, excessive heating, engine short circuit, low or high voltage, phase loss in engine inlet. |
| Machine Protection |
Grounding connection was made by grounding cable on driver, engine, power resource and machine frame on machine. |
| Environmental Protection |
In order to prevent Electro-Magnetic emision to environment during work of drivers, cable with screen was used in engine and control cables and ground connection was made. In addition noise made during operation of engine and electrical equipment was reduced to minimum level. |
| Conveyor |
Conveyor, special chain was hidden inside sledge. Pallet space distances and sizes can very. It is covered by chromium metal sheet. |
| Paper Flow |
Single bobbin should be loaded. Very fast bobbin can be replaced. Sound bobbin brake and flat, regular paper flow are assured. |
| Bottom Sticking Pulleys |
There are three groups pulley discs. Pulling discs are made from cadminium. Hot will be applied to second group. Sound bedding and quiet revolution without waste are provided. |
| Sticking Jaws |
Quiet revolution fast pressing adjustment, special zig-zag blades and central lubrication system. System in jaws can be made while engine works very fast. |
| Electrical Panel |
The most advanced technology and the most modern electrical materials (SIEMENS – TELEMECANIQUE) and the most advanced technological systems have been used. Heat was controlled very sensitively. Control buttons required for electrical motor, photocell and heating color resistances have been used. |
|
|
| |
|
|
| |

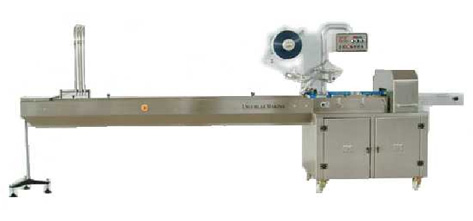

UM-1400 HORIZANTAL FLOW-PACK PACKAGING MACHINE
TECHNICAL SPECIFICATIONS
Capacity |
Hot Sealing Material |
- 520 kg(net)
- 220 V.A.C/300 V.A.C
- 1.1 Kw. power
- 4x600 Watt resistance
- 2x300 Watt resistance
- Hot sealing speed 100-170 R/M
- Cold sealing speed 250-350 R/M
|
Cellophane, pruluze, laminated p.p. , laminated AL. , p.p. |
Cold Sealing Material |
All kinds of sucb material
Product dimensions supply to the production capacity |
Product Dimensions |
Min. mm. |
Max. mm. |
Lenght |
40 |
400 |
Height |
2 |
60 |
Width |
15 |
200 |
|
|
|
| |
|
|
| |
UM-1500 HORIZANTAL FLOW-PACK PACKAGING MACHINE
TECHNICAL SPECIFICATIONS
Capacity |
Hot Sealing Material |
- 520 kg(net)
- 220 V.A.C/300 V.A.C
- 1.1 Kw. power
- 4x600 Watt resistance
- 2x300 Watt resistance
- Hot sealing speed 100-170 R/M
- Cold sealing speed 250-350 R/M
|
Cellophane, pruluze, laminated p.p. , laminated AL. , p.p. |
Cold Sealing Material |
All kinds of sucb material
Product dimensions supply to the production capacity |
Product Dimensions |
Min. mm. |
Max. mm. |
Lenght |
40 |
400 |
Height |
2 |
60 |
Width |
15 |
200 |
|
|
|
| |
|
|
| |
UM-1060 OVER WRAPPING PACKAGING MACHINE
TECHNICAL SPECIFICATIONS
Standard Properties |
Capacity |
- Photocell
- Electronical Speed Control System
- Infeed table 3300 mm, double flight bar
- Electrical overload protection
- High quality commercial electronic components
- No product-No film(optional)
- Tear strip unit(optional)
|
Max : 35-55 packets/min. (Capacities depend on package sizes and wrapping materials)
Weight: 950 kg |
Product Size Limits |
Packet Length |
90 to 280 mm |
Packet Width |
25 to 140 mm |
Packet Height |
15 to 90 mm |
can be changed according to your product |
Outer diameter |
300 mm |
Inner diameter |
76 mm |
Width |
120 to 350 mm |
|
|
| |
|
|
| |
UM-1080 OVER WRAPPING PACKAGING MACHINE
UM 1080 OVER WRAPPİNG PACKAGİNG MACHINE –on the cartooning box’s cellophane to wrap up and ideal machine for packing cartons. For example tea carton,nakhla carton, and chocolate carton etc...
TECHNICAL SPECIFICATIONS
Standard Properties |
Capacity |
- Electronical Speed Control System
- Infeed table 1000 mm, double flight bar
- Electrical overload protection
- High quality commercial electronic components
|
Max : 30-50 packets/min. (Capacities depend on package sizes and wrapping materials)
Weight: 950 kg |
| Engine: 1.1 kw,AC |
| Adhesive resistance: 2x400 watt, 220 V 1x400 watt, 220 V |
| Control panel voltage: 220 V |
| Weight: 950 k |
|
|
| |
|
|
| |
|
|
|
|
